Logitech Conferencing - Call One, Inc Logitech Video Conferencing

PRODUCTS

VIDEO CONFERENCING

COLLABORATE YOUR WAY

Easy, effective, and reliable video solutions for any meeting space

FIND SOLUTIONS

RALLY BAR

All-in-one video bar for midsize rooms

$3,999.00

CONTACT SALES

SPECIFICATIONS

DATA SHEET

VIDEO OVERVIEW

SIMPLE TO SET UP

USB Mode

Connect via USB to virtually any PC or Mac with no additional software needed.

Appliance Mode

Run supported video conferencing applications – such as Zoom, Microsoft Teams Rooms, and others – directly on the device with no computer or laptop required.

Cable Management

Ensure clean, confident installs with secure cable retention and minimal cabling.

Mounting Options

Take advantage of multiple mounting options to deploy Rally Bar quickly and easily across all your midsize rooms.

LOOKS BRILLIANT

Upgrade the meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy.

WATCH: DIGITAL VS. OPTICAL ZOOM

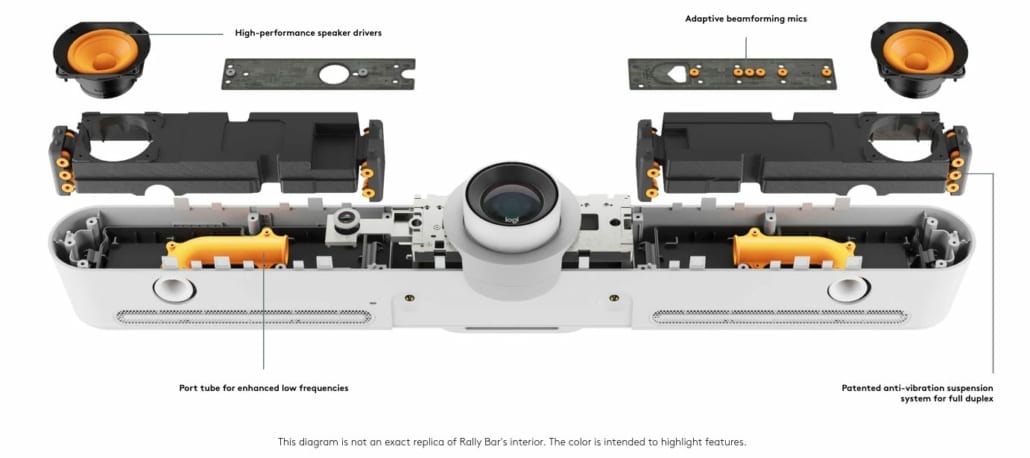

SOUNDS AWESOME

Rally Bar’s advanced audio engineering delivers powerful, room-filling sound and makes sure every voice is clearly heard.

RALLY BAR

Graphite

1 2 3 4 5

Purchase Logitech Rally Bar - Graphite

RALLY BAR

White

1 2 3 4

Purchase Logitech Rally Bar - White

SPECS AND DETAILS

Technical Specifications

Dimensions

Height: 6.46 in (164 mm)

Width: 2.99 ft (910 mm)

Depth: 5.14 in (130.5 mm)

Weight: 15.6 lbs (7.08 kg)

Technical Specifications

Camera

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal field of view (dFoV): 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2°
Total Room Coverage: 132.1° Horizontal x 82.2° Vertical

Speakers, Microphones, RightSense Technology

Speakers

Drivers: 2x 70 mm / 2.7 in
Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Sensitivity: 90+/-3dB SPL at 1W, ½ meter
THD: 1kHz < 2%
Speaker Sampling Rate: 48 kHz

Microphones

Frequency response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: 15 ft / 4.5 m
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI filter
Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms

RightSense™ Technologies

RightLight™: Renders natural skin tones for each participant.
RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces, Power and Cables, Environmental

Interfaces

HDMI Out: 2
HDMI In: 1
USB 3.0: 3x Type A, 1x Type C
Network: 0.04oz (1 g)0/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac (MIMO)
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy

Power & Cables

Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)
DC Cable: 5 ft (1.5 m)
AC Cable: 3.28 gy (1 m)
HDMI 1.4 Cable: 7 ft (2 m)
USB A to USB C 3.0 Cable: 2.2 m/7.2 ft

Environmental

Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting

General Specifications

Security

Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP

Certifications & Compatibility

Certifications: Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
Compatibility: Plug and play USB connectivity with virtually any video conferencing application
Appliance mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances.
Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

GENERAL SPECIFICATIONS

Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2
Display Resolution: Up to 4K

Accessories, Package Contents, Warranty

Accessories

Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity: Cable USB 10 Logitech Strong [32.81 ft (10 m), 65.6 ft (25 m), 147.64 ft (45 m)]
Touch Controller: Logitech Tap

Package Contents

Rally Bar
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main camera and AI Viewfinder
User documentation

Warranty Information

Standard: 2-year limited hardware warranty included Extended: Additional one-year extended warranty available at the time of hardware purchase. Contact your reseller for availability.

Part Number

Graphite: 960-001308
White: 960-001320

WELCOME TO THE FAMILY

Explore Logitech’s beautifully simple, next generation of small, medium, and large room solutions that can be deployed in PC or appliance mode.

WATCH THE VIDEO >

RALLY BAR MINI

Premier all-in-one video bar for small rooms

Coming Spring 2021

VIDEO OVERVIEW DATA SHEET

1 2 3 4

1 2

Rally

Premium Ultra-HD ConferenceCam system with automatic camera control

Logitech Rally

Logitech Rally Plus

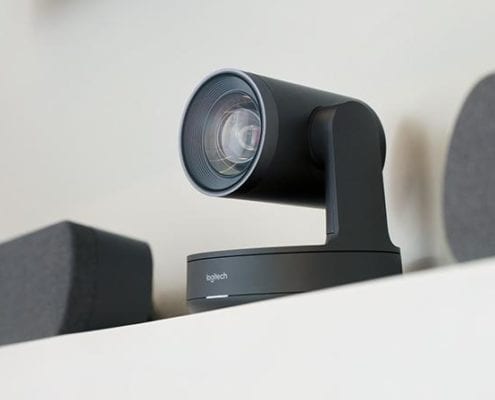

Rally Camera

Premium PTZ camera with Ultra-HD imaging system and automatic camera control

Meetup

All-in-one conferencecam for small conference rooms and huddle rooms.

PTZ Pro 2

HD 1080p video camera with enhanced pan/tilt and zoom

Group

Video conferencing for mid to large-sized meeting rooms

Connect

Portable ConferenceCam with Bluetooth speakerphone for the huddle room, home office, and on the go

BCC950

Desktop video conferencing solution for private offices, home offices, and most any semi-private space

Headsets

Stylish and affordable, Logitech headsets are designed for long-lasting comfort to make every call more productive.

1 2

Logitech Zone Wireless for MS Teams

Wireless Bluetooth headset, On ear controls, Mute LED MS Teams

Logitech Zone Wireless

Bluetooth headset designed for the open office with exceptional sound, flip-to-mute mic and Qi wireless charging.

Logitech Zone Wired

Open Office-certified1 USB wired headset with premium audio for calls and music. Ideal for noisy workspaces.

Logitech H820e Headset

Wireless headset for business communications

Logitech H650e Headset

Stylish and sophisticated headset for pro-quality audio

Logitech H570e Headset

Comfortable, affordable, and built to last

Logitech P710e Speakerphone

Ready for any mobile device with Bluetooth or USB

Webcams

Designed to work with any VC software, Logitech webcams offer instant collaboration with high-quality HD video.

c505e 720P USB Webcam

HD 720p video and a long-range mic that supports clear, natural conversation up to 3 meters away.

C920e

1080p and 30FPS with autofocus and privacy shade

Brio Ultra HD Pro Webcam

4K webcam with HDR and Windows Hello support

C930e Business Webcam

Designed for business, a 1080p webcam with wide field of view and digital zoom

C925e Business Webcam

Best budget webcam with 1080p and integrated privacy shutter

Room Solutions

Complete room solutions from Logitech allow participants to quickly kick off and run a video conference meeting.

1 2 3

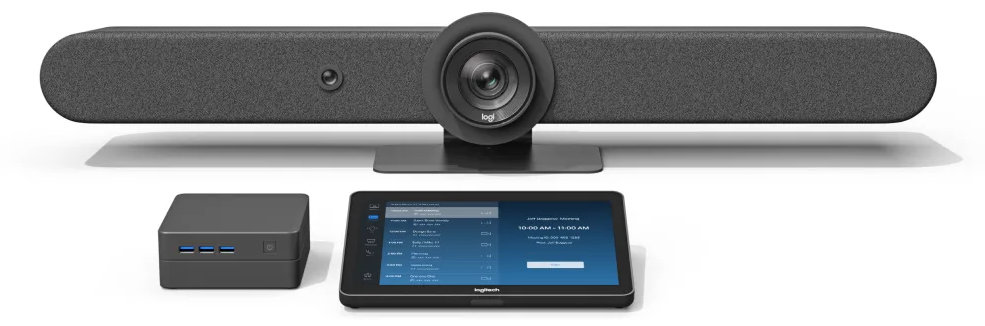

Logitech Rally Bar for PC-Based Zoom Rooms

Transform any space into a Zoom Room with one-touch join, wired and wireless content sharing, and center-of-room control with Tap.

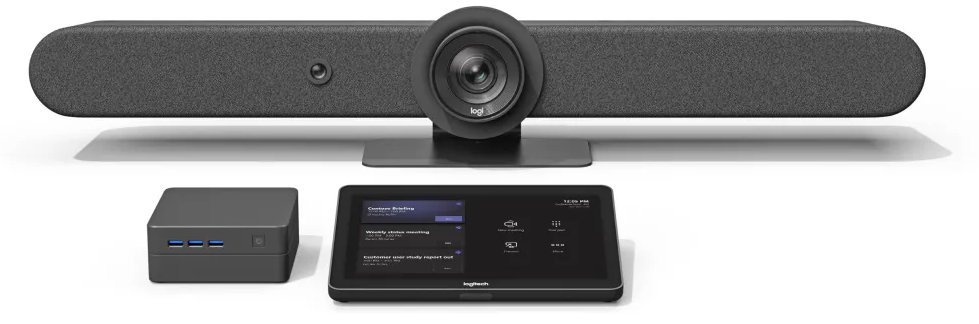

Logitech Rally Bar For Microsoft Teams

Transform any space into a Microsoft Teams® Room on Windows® with one-touch join or Proximity Join, wired and wireless content sharing, and center-of-room control with Tap.

Logitech Rally Bar For Teams Rooms on Android

No PC required. Built-in support for Microsoft Teams Rooms on Android allows you to quickly and easily set up your small, medium, and large conference rooms with fewer cables and components.

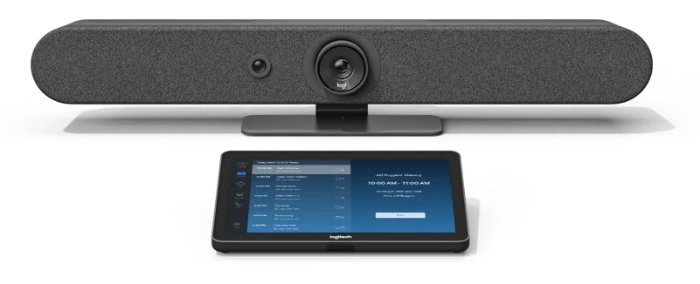

Logitech Rally Bar For Zoom Room Appliances

Appliance-based video conferencing solutions for small, medium, and large rooms, preconfigured for Zoom Rooms™

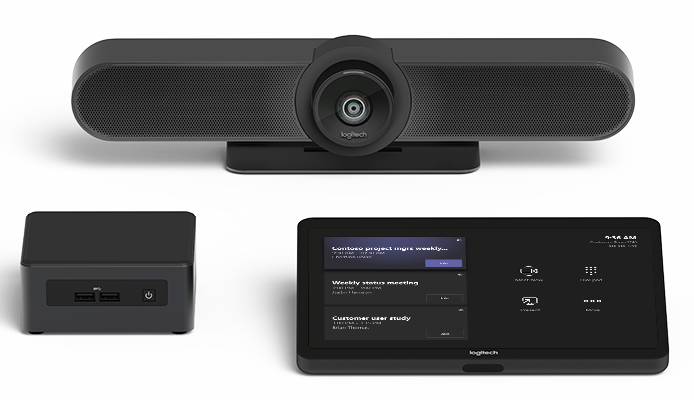

Logitech Room Solutions for Microsoft Teams

Pre-configured systems for small, medium, and large rooms

Logitech Room Solutions for Zoom Rooms

Pre-configured systems for small, medium, and large rooms

Logitech Room Solutions for Barco ClickShare for small rooms

Designed for focus rooms and smaller conference rooms

Logitech Room Solutions for Barco ClickShare for medium rooms

As rooms get bigger, tables grow longer, and people sit farther from the camera. That’s why the medium configuration features Logitech Rally, a premium conference cam that pairs an advanced camera with modular audio that scales to support rooms for up to 10 seats.

Logitech Room Solutions for Barco ClickShare for large rooms

The large configuration upgrades to Rally Plus with two speakers for clear audio throughout the room. Dual mic pods expand coverage for up to 16 people.
