THE ULTIMATE WORKSTATION

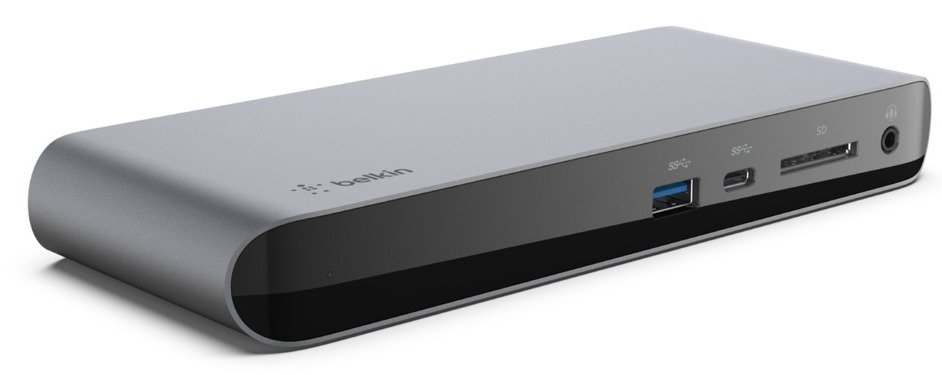

Belkin Thunderbolt 3 Dock Pro
The power, speed and pixels of Thunderbolt 3 are best in class, and this smart dock brings all the benefits in a single docking station solution. Compatible with Mac and Windows, simply connect your Belkin Thunderbolt 3 or USB-C™ laptop* with the included Thunderbolt 3 cable to instantly create a powerful work station. Enjoy Ultra-High Definition monitor support, up to 40 Gbps transfer rates, 85W of power to your laptop, and support for multiple peripherals via Thunderbolt, USB-A, USB-C, Ethernet, SD and Audio ports, all through a single cable.
*USB-C host performance will be limited. Note that not all USB-C ports support the full functionality of the USB Type-C standard. USB-C hosts may not support extended display to external monitors.
THE BELKIN DIFFERENCE
- Pioneer in innovation and technology for over 35 years
- Innovative solutions designed to suit both professional and at-home users
- Building on the success of the Thunderbolt 3 Express Dock HD named CES 2018 Best of innovation Awards Honoree
- Rigorous insertion testing guarantees quality, performance and durability
- Environmental tests ensure safety of all materials

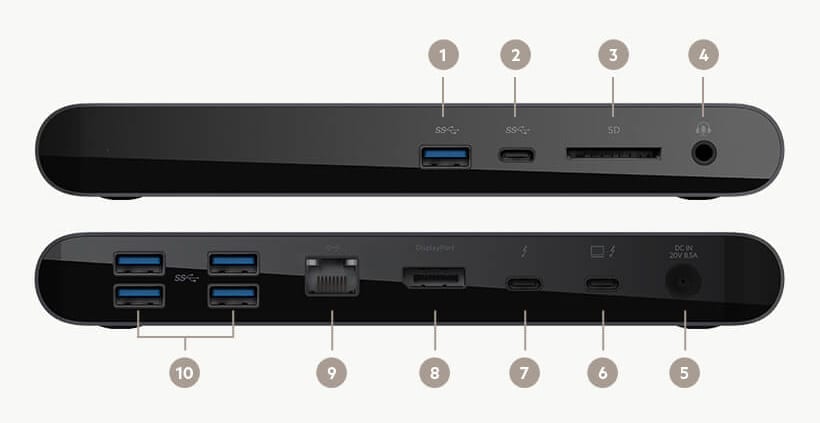

ROOM FOR ALL YOUR PERIPHERALS
Enjoy easy access to monitors, networks, power and peripherals with multiple ports available.

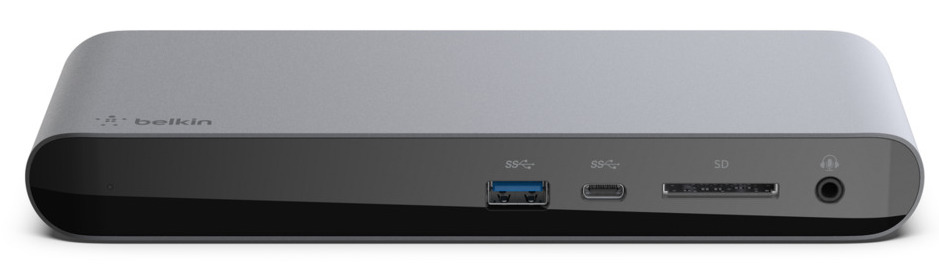

FRONT:
- 1 x USB-A 3.1 port for USB-A peripherals
- 1 x USB-C 3.1 port for USB-C devices
- SD card reader connects to SD cards without an adapter
- Audio in/out for mic and speaker support
- 170W PSU (Power Supply Unit) powers the dock, and also charges the connected laptop up to 85W, to keep your laptop charged while you work
- Thunderbolt 3 port connects to laptop with the included Thunderbolt 3 cable
- Thunderbolt 3 port connects to high-resolution monitor/display and Thunderbolt 3/USB-C peripherals
- DisplayPort™ connects to high-resolution monitor/display
- Gb Ethernet for reliable, hardwired Ethernet connection
- 4 x USB-A 3.0 ports for devices that connect via USB-A such as a mouse, keyboard or printer
BACK:
THUNDERBOLT 3 CABLE INCLUDED
The dock connects to your Thunderbolt 3 or USB-C laptop through a single cable, which is included in the box. At 2.6ft / 0.8m, this cable is long enough to fit around furniture or reach further from the main outlet, to offer a more versatile desk configuration.
MAC AND WINDOWS COMPATIBLE
Equipped with the latest Intel chipset/controller to be compatible with Mac (Mac OS) and PC (Windows) laptops, this dock is ideal for businesses with both types of laptop in their organization. It is also well-suited for work spaces in meeting/conference rooms, hotels and other shared work environments. See table below for system requirements.
| Display Configurations | Ports | |
|---|---|---|
| Mac | macOS Sierra 10.12 or later | Thunderbolt 3 port |
| PC (Windows) | Windows 10 or later | Thunderbolt 3 port |
SLEEK ALUMINUM EXTERIOR
Durable aluminum casing protects the delicate circuitry inside the dock, while presenting a stylish, minimal exterior designed to suit any work space.
DUAL HIGH-DEFINITION MONITOR SUPPORT
The Belkin Thunderbolt 3 Dock Pro supports dual high-definition monitors for a versatile workspace. Please see the table below for specific resolution capabilities for all monitor combinations.
| Single Monitor Support | Dual Monitor Support | |
|---|---|---|
| Thunderbolt 3 Laptop | Laptop running High Bit Rate 3: 8K (7680 x 4320) @ 30Hz Laptop running High Bit Rate 2: | Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 60Hz Laptop running High Bit Rate 2: |
| USB-C Laptop | Laptop running High Bit Rate 3: 5K (5120 x 3200) @ 30Hz Laptop running High Bit Rate 2: | Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 30Hz & 1080P @ 60Hz Laptop running High Bit Rate 2: |
ULTRA HIGH-SPEED SD TRANSFER
The SD (secure digital) card slot supports Ultra-High-Speed II (UHS-II), to transfer data quickly at up to 312 MB/s bus speed. Supporting standard SD cards, SDHC (High-Capacity) cards and SDXC (Extended-Capacity) cards, UHS-II can transfer a full day’s camera footage three times faster than UHS-I.
POWER TO SHARE
With the included 170W power supply unit, the Belkin Thunderbolt 3 Dock Pro provides up to 85W of power for a connected laptop. Also known as “upstream charging,” this keeps your laptop charged while in use, without a separate power cable.
Specs:
- W: 200mm / 7.87 in
- D: 81mm / 3.19 in
- H: 26mm / 1.02 in
- Weight: 422grams / 14.89 oz
Package Includes:
- Thunderbolt 3 Dock Pro
- 0.8m / 2.6ft. Thunderbolt 3 cable
Tech Specs
Cable connector:
- Thunderbolt 3
- USB-A
- USB-C
- 3.5mm
- Ethernet
- DisplayPort
WORLD’S FIRST THUNDERBOLT™-CERTIFIED DUAL-POWERED DOCK
The Thunderbolt 3 Dock Core brings the speed, high-definition and performance of Thunderbolt technology to Mac and Windows laptops. With all the power and versatility of Thunderbolt 3, plus ports to connect multiple peripherals to a Thunderbolt laptop, this dock is a streamlined way to create an expanded, high-performing desktop through a single tethered cable.
CONNECT AN ENTIRE DESKTOP THROUGH A SINGLE CABLE

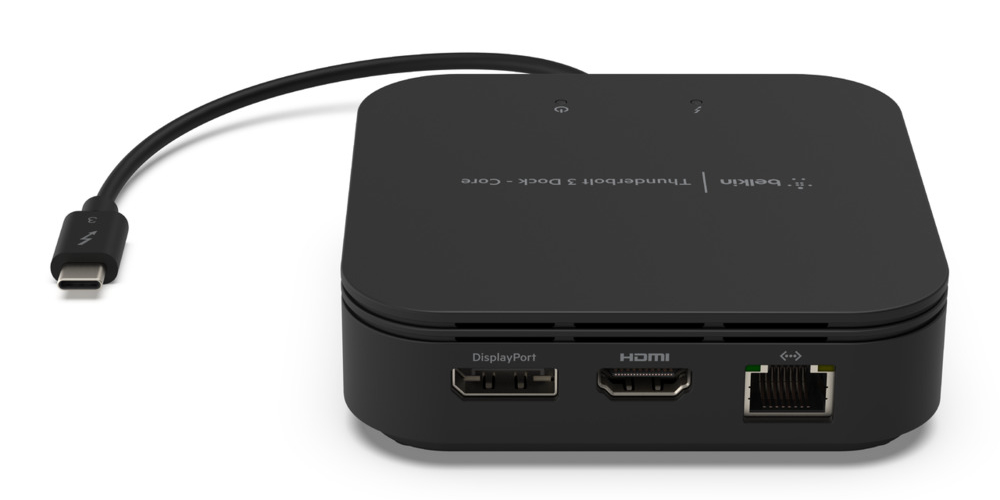

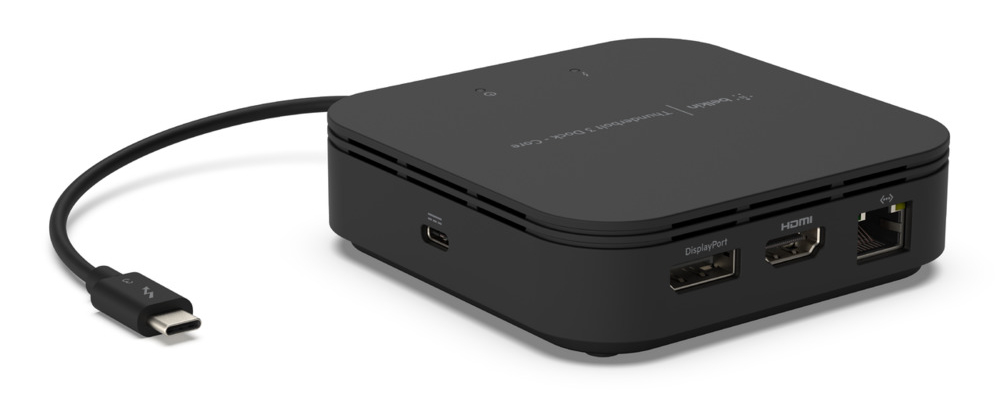

Belkin Thunderbolt 3 Dock Core
The tethered 6-inch Thunderbolt 3 cable connects multiple peripherals to your laptop, with ports for monitors, mouse, USB stick, keyboards, speakers, hard drives and more.
SIDE 1:
- 1 x DisplayPort™ 1.4 connects to high-resolution monitors/displays (for resolutions, see table below)
- 1 x HDMI (HDMI 2.0) port
- Gigabit Ethernet connection
- Tethered Thunderbolt 3 cable connects to laptop
- 1 x USB-C PD port (input)
- Audio in/out for mic and speaker support
- 1x USB-A 3.2 Gen 2(10Gbps) and 1x USB-A 2.0 ports for devices that connect via USB-A such as a USB stick, mouse, keyboard or printer
SIDE 2:
SIDE 3:
WORKS WITH THUNDERBOLT 3 DEVICES
Belkin Thunderbolt 3 Dock Core
The Thunderbolt 3 Dock Core is an ideal single-dock solution for businesses using MacBooks running Mac OS, and laptops running Windows. This broad compatibility is also ideal for shared work environments or temporary workstations where laptop users are looking for a high-performing workstation with minimal set up.*
See table below for system requirements.
| Display Configurations | Ports | |
|---|---|---|
| Mac | macOS Sierra 10.12 or later | Thunderbolt 3 port |
| PC (Windows) | Windows 10 or later | Thunderbolt 3 port |
DUAL 4K MONITOR SUPPORT
Supports dual 4K 60Hz monitors for a versatile desktop configuration, via a dedicated DisplayPort and an HDMI 2.0 port. Also supports a single 5K monitor at 60Hz and capable of reaching 8K 30Hz.
Please see the table below for specific resolution capabilities for all monitor combinations.
| Single Monitor Support | Dual Monitor Support | |
|---|---|---|
| Thunderbolt 3 Laptop | Laptop running High Bit Rate 3: 8K (7680 x 4320) @ 30Hz Laptop running High Bit Rate 2: | Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 60Hz Laptop running High Bit Rate 2: |

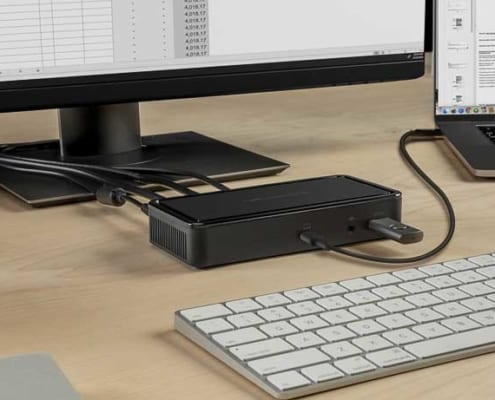

DUAL-POWERED FUNCTIONALITY
Belkin Thunderbolt 3 Dock Core
When the Thunderbolt 3 dock is connected to a laptop, it powers peripheral devices connected to the dock without the need for a separate power cable. Keep your laptop charged by connecting its existing power supply unit (60W recommended) to the USB-C PD port on the Thunderbolt dock.
Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries.
2-YEAR WARRANTY
Thunderbolt 3 Dock is backed by a 2-year product warranty for added peace of mind.
Specs:
- L: 100mm/3.94in
- W: 100mm/3.94in
- H: 30mm/1.18in
- Cable length: 20cm/7.87in
- Weight: 213.8g
At a Glance:
- World’s first Thunderbolt-certified dual-powered dock
- Compatible with Thunderbolt-certified Mac and Windows laptops with a Thunderbolt 3 port
- Connect multiple devices to your laptop through one dock, including monitors, USB stick, mouse, keyboards, internet, hard drives and more
- Supports dual 4K UHD displays @ 60Hz
- 7 ports: 1 x Thunderbolt 3, 1 x USB-C PD, 1 x DisplayPort, 1 x HDMI, 1x USB-A 3.2 Gen 2(10Gbps), 1x USB-A 2.01, 1 x Audio in/out, 1 x Gigabit Ethernet
- Supports pass-through power from a laptop to connected devices
- Connect laptop’s power supply unit (60W recommended) to the dock to power the laptop
- Protected by 2-year product warranty
*Docks are designed to be compatible with all Thunderbolt-certified hosts (dependent on OS version) and peripherals.
Package Includes:
- Thunderbolt 3 Dock Core
Tech specs
- Features: USB-C Power Delivery
- Cable connector: DisplayPort
- HDMI
- USB-C
- 3.5mm
- USB-A
- Thunderbolt 3
HARNESS THUNDERBOLT ANYWHERE
Turn your Mac or Windows laptop into a powerful work station, using the power and speed of Thunderbolt 3. This compact dock connects to your computer via a single tethered cable. Dual HDMI 4K ports at 60Hz allow you to connect two 4K monitors to your laptop, to experience fast, high definition visuals across multiple screens. Use a keyboard, mouse, or other peripherals via the USB-A 3.0 and USB-A 2.0 ports and enjoy a secure and reliable network connection through the gigabit Ethernet port.
THE BELKIN DIFFERENCE
Belkin Thunderbolt™ 3 Dock Mini HD
- Pioneer in technology and innovation for over 35 years
- High-quality components and construction ensure continued quality, even with heavy use
- Premium aluminum enclosure integrates seamlessly to your laptop environment
- 2-Year Limited Warranty for added peace of mind
A TRULY PORTABLE WORKSTATION
Belkin Thunderbolt™ 3 Dock Mini HD
Harness the speeds, quality and power of your Thunderbolt 3 laptop with a portable and compact dock that’s always up to the task. From temporary office spaces to collective workstations, the Thunderbolt 3 Dock Mini allows you to connect high-resolution monitors and multiple peripherals easily, for maximum productivity anywhere.
WINDOWS AND MAC COMPATIBLE
An innovation from previous Thunderbolt 3 products, this dock is compatible with laptops using Windows or Mac operating systems.
DUAL 4K DISPLAYS
With high-resolution monitor support for two 4K screens at 60Hz, this dock allows you to access large amounts of information from your laptop, via a simple and convenient one-cable connection. This multiple screen setup delivers a highly efficient workstation to boost productivity.
NO SPEED LIMIT
Belkin Thunderbolt™ 3 Dock Mini HD
40 Gbps data transfer rates is fast enough for whatever you plug in. You’ll maintain full speed even when fully loaded and running multiple peripherals at once. You can transfer 3 hours of 4K action camera footage in less than a minute. That’s 8x faster than USB 3.0.

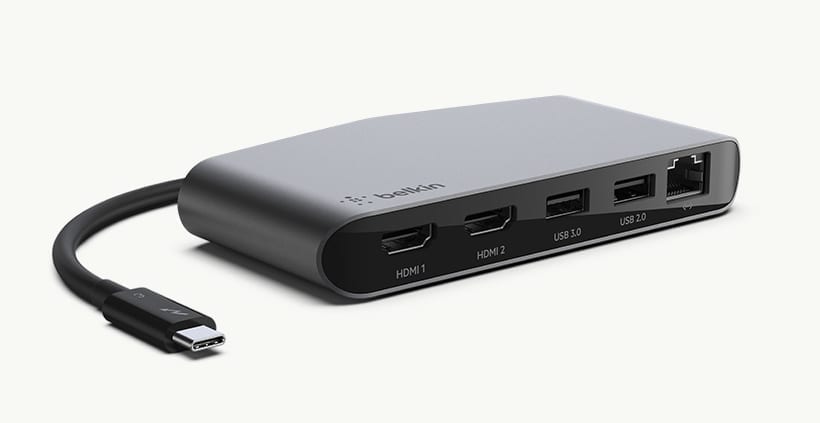

SINGLE CABLE SOLUTION
Belkin Thunderbolt™ 3 Dock Mini HD
Connect four devices – including two HDMI monitors – plus Ethernet, through a single Thunderbolt cable. The cable is tethered for convenience, to provide the ultimate all-in-one, portable dock.
- 2 HDMI 4K ports
- 1 USB-A 3.0 port
- 1 USB-A 2.0 port
- 1 gigabit Ethernet port

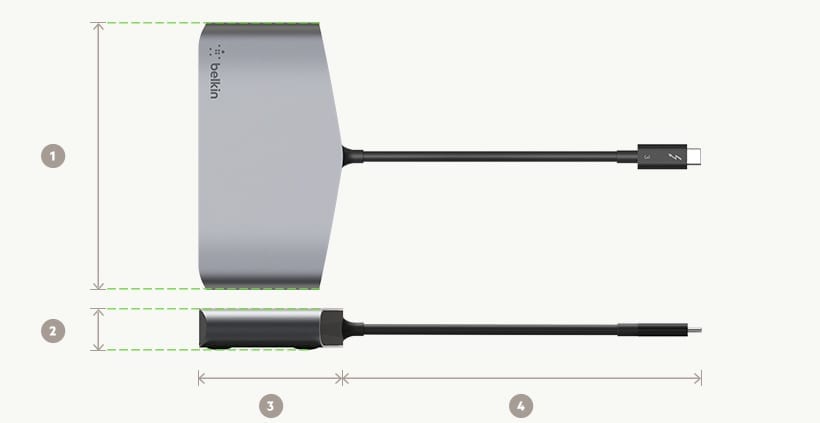

SPECS
- Width: 130mm/5.1in
- Height: 21mm/0.8in
- Length: 79mm/3.1in
- Cable length: 174mm/6.8in
Weight: 179g/6.3oz
Package Includes: Thunderbolt™ 3 Mini Dock HD
THE INSTANT WORKSTATION
Fast, ultra-high definition, powerful, and now even more versatile, meet the new wave of Thunderbolt 3 Docks. The Thunderbolt 3 Dock Plus offers universal compatibility, bringing all the benefits and convenience of Thunderbolt 3 technology to both Mac and Windows laptops. With 40Gbps transfer rates,* 60W power to charge your connected laptop, dual 4K 60Hz monitor support and multiple ports for peripherals, simply connect the dock to your Mac or Windows laptop – with the included Thunderbolt 3 cable – to create a high-performing, instant workstation.
THE BELKIN DIFFERENCE
Belkin Thunderbolt 3 Dock Plus
- Pioneer in innovation and technology for over 35 years
- Designed with professional and at-home users in mind
- Building on the success of Belkin’s CES 2018 Best of Innovation Awards Honoree, the Thunderbolt 3 Express Dock HD
- Insertion testing guarantees quality for lasting performance and durability
- Tested under fluctuating environmental conditions to ensure safety of materials

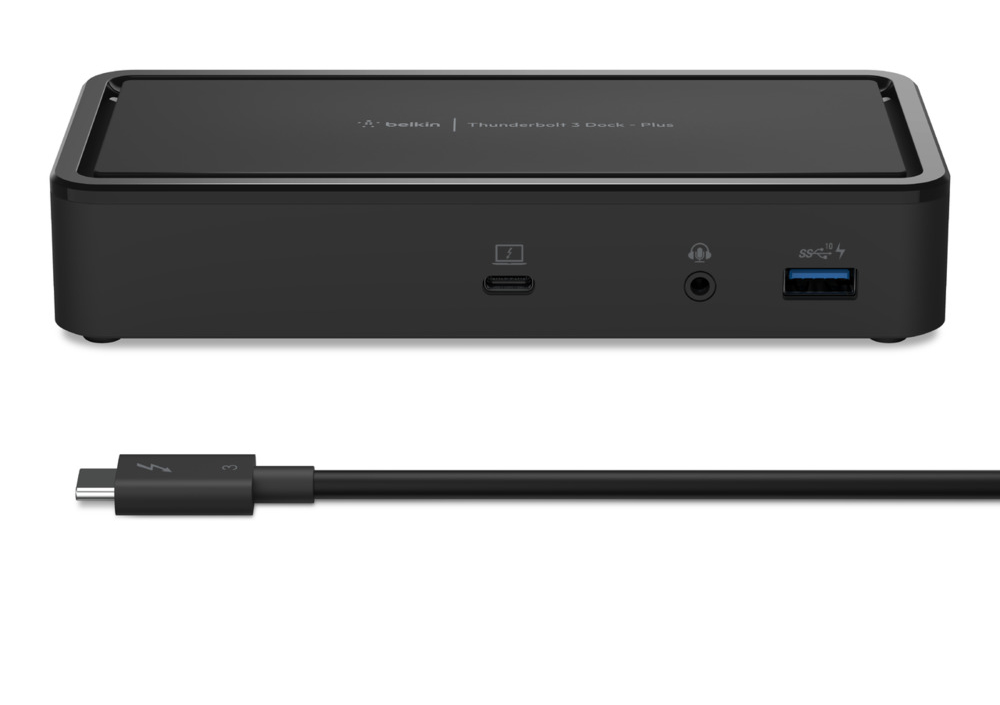

Belkin Thunderbolt 3 Dock Plus
MORE PORTS FOR MORE DEVICES
Connect all your peripheral devices – monitors, mice, keyboards, speakers, hard drives and more – to your laptop via a single cable.
FRONT:
- Thunderbolt 3 Type-C port with PD 3.0 delivers charging (up to 60W) to laptop with the included Thunderbolt 3 Gen 2 cable
- Audio in/out for mic and speaker support
- 1 x USB-A 3.1 Gen 2 port for USB-A peripherals
- Gigabit Ethernet connection
- 2 x USB-A 3.1 Gen 1 ports for devices that connect via USB-A such as a mouse, keyboard or printer
- 2 x USB-C 3.1 Gen 2 ports for USB-C peripherals
- 2 x DisplayPort™ 1.4 connect to high-resolution monitors/displays (for resolutions, see table below)
- 125W PSU (Power Supply Unit) powers the dock, and also charges the connected laptop up to 60W, to keep your laptop charged as you work
BACK:
THUNDERBOLT 3 AND USB-C COMPATIBLE
Belkin Thunderbolt 3 Dock Plus
Thanks to the inclusion of a smart chipset/controller from Intel, this dock supports both Thunderbolt 3 and USB-C, and is also fully compatible with both MacBooks running Mac OS, and laptops running Windows. Such broad compatibility makes it the ideal choice for temporary workstations or shared work environments, which are visited by different users, who may have different laptop types but still need an easily accessible and high-performing workstation. The Thunderbolt 3 Dock Plus is also a convenient, economical, single dock solution for businesses supporting both Mac and Windows laptops within their organization.
See table below for system requirements.
| Display Configurations | Ports | |
|---|---|---|
| Mac | macOS Sierra 10.12 or later | Thunderbolt 3 port |
| PC (Windows) | Windows 10 or later | Thunderbolt 3 port |
DUAL 4K MONITOR SUPPORT
With so many ports available, the Thunderbolt 3 Dock Plus easily connects two high-definition displays, without compromising access to your other peripherals. Please see the table below for specific resolution capabilities for all monitor combinations.
| Single Monitor Support | Dual Monitor Support | |
|---|---|---|
| Thunderbolt 3 Laptop | Laptop running High Bit Rate 3: 8K (7680 x 4320) @ 30Hz Laptop running High Bit Rate 2: | Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 60Hz Laptop running High Bit Rate 2: |
| USB-C Laptop | Laptop running High Bit Rate 3: 5K (5120 x 3200) @ 30Hz Laptop running High Bit Rate 2: | Laptop running High Bit Rate 3: 4K (3840 x 2160) @ 30Hz & 1080P @ 60Hz Laptop running High Bit Rate 2: |
Belkin Thunderbolt 3 Dock Plus
POWER TO SHARE
With its power supply unit drawing 125W from the mains, the Thunderbolt 3 Dock Plus is able to provide up to 60W of power for a connected laptop. Also known as “upstream charging,” this keeps your laptop charged while in use, without the need for a separate power cable.
Belkin Thunderbolt 3 Dock Plus
SPECS
W: 165.7mm / 6.52 in
D: 77.6mm / 3.06 in
H: 31mm / 1.22 in
Weight: 267g / 9.42 oz
Package Includes:
Thunderbolt 3 Dock Plus
0.5m / 1.6ft. Thunderbolt 3 cable
Tech Specs
Features: USB-C Power Delivery
Cable connector: Thunderbolt 3
USB-C
3.5mm
USB-A
Ethernet
DisplayPort
